HBP-1320

HBP-1320-E

Cardiovascular Products

Professional Upper Arm Blood Pressure Monitor

Find a store

The mobile professional for medical professionals.

The HBP-1320 upper arm blood pressure monitor for healthcare professionals is easy to use, has a robust design, and an integrated handle that makes carrying easier, with fully automatic oscillometric measurement.

This device has been clinically proven to deliver fast and reliable results. Thanks to the 4-button design, the operation of the blood pressure monitor is intuitive; the display can be read very easily by the lighting and large numbers.

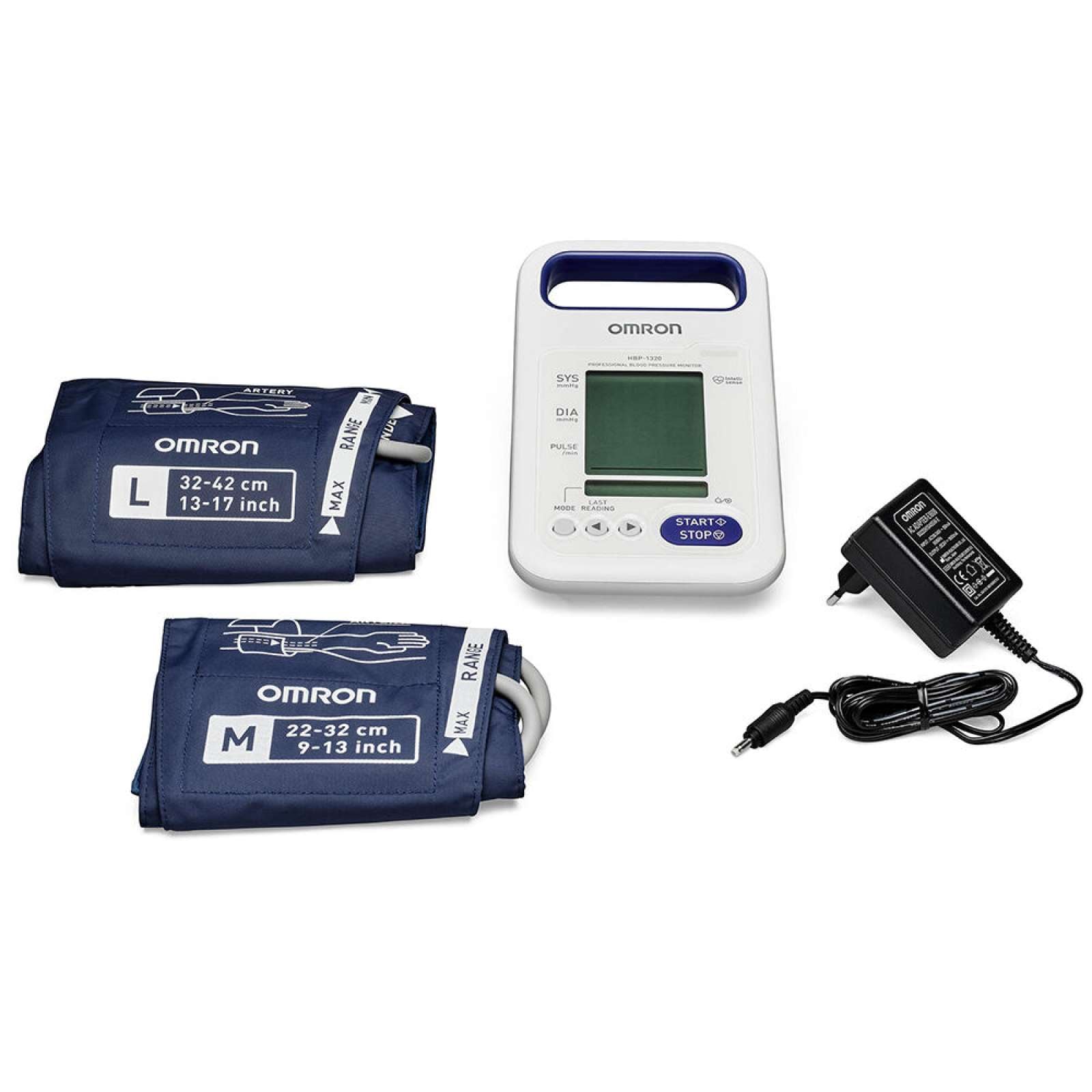

Main unit cuff size L (32-42 cm) cuff size M (22-32 cm) AC adapter battery pack instruction manual guarantee card

Device Type: Upper Arm Blood Pressure Monitor

Weight of Device (kg): 0.52

Display Type: 7 segment LCD

MDD Classification: Class II a

AC Adapter Included: Yes

Cuffs: SS (12-18cm), S (17-22cm), M (22-32cm), L (32-42cm), XL (42-50cm). With shorter (1 m) or longer (4.5m) tube attached.

Reference Standard: EN1060-1:1995+A2:2009, EN1060-3:1997+A2:2009, EN80601-2-30:2010+A1:2015, EN ISO 81060-2:2013,

Measurement Technology: Oscillometric, Auscultatory

Measurement Method: Dynamic Linear, Deflation method

Pressure Display Range: 0 to 300 mmHg

NIBP Accuracy: Maximum mean error within ±5 mmHg, Maximum standard deviation within 8 mmHg

Pulse Rate Accuracy: Within ±5 % of reading

Item Dimensions (mm): 123 x 201 x 99

Instruction manual

Download

Custom rechargeable battery makes it possible take up to 300 measurements with one charge.

This device is intended for use on adults and children of age 3 years and older using the corresponding cuff size.

The cuff sizes are available for use on different arm circumference:

XL (42-50cm)
L (32-42cm)
M (22-32cm)
S (17-22cm)
SS (12-18cm)

Charging is completed in about 4 hours.

Benefits

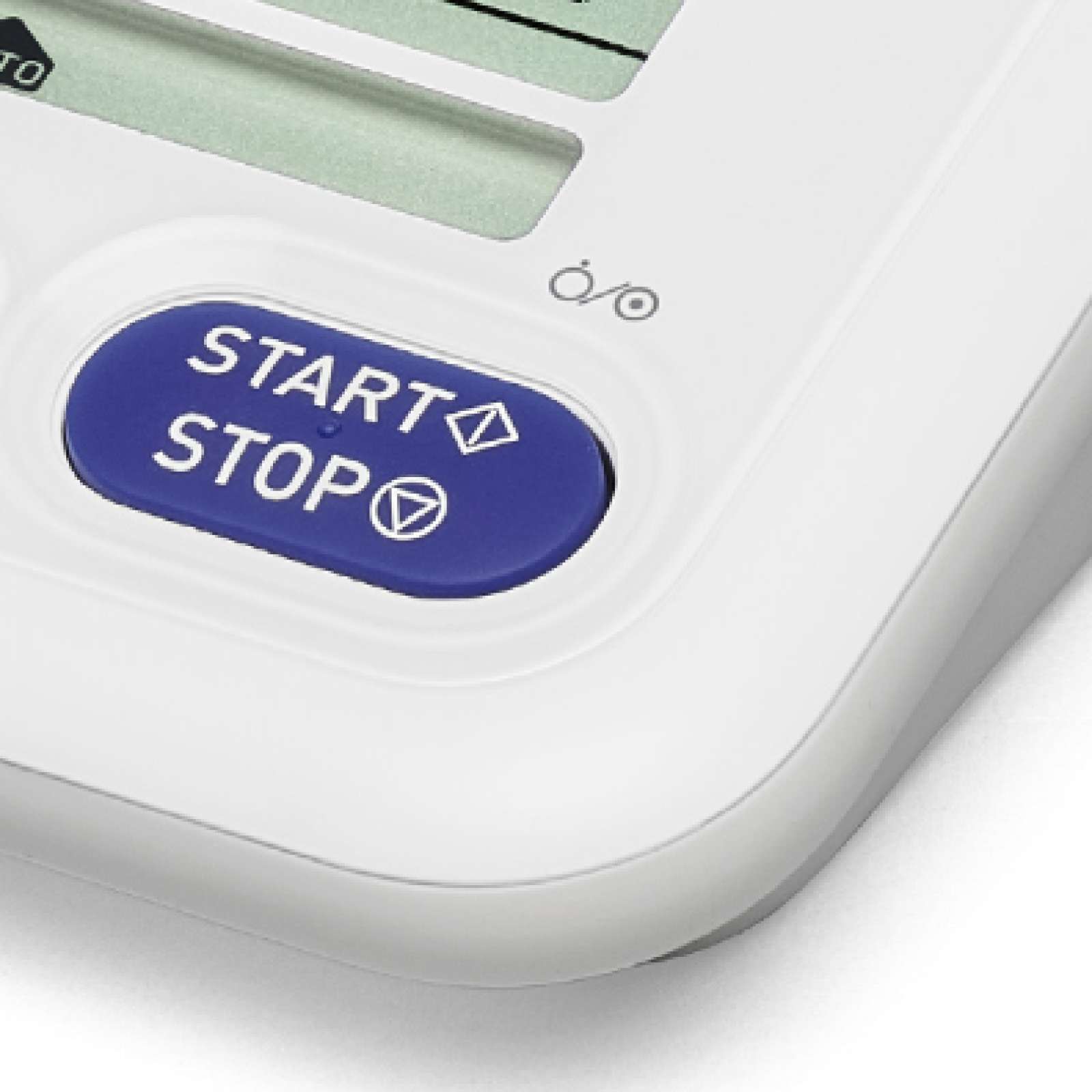

Robust design

Shock-proof bumper protects against falls.

Easy to clean

The monitor and the cuffs can be disinfected with alcohol based cleaning agents.

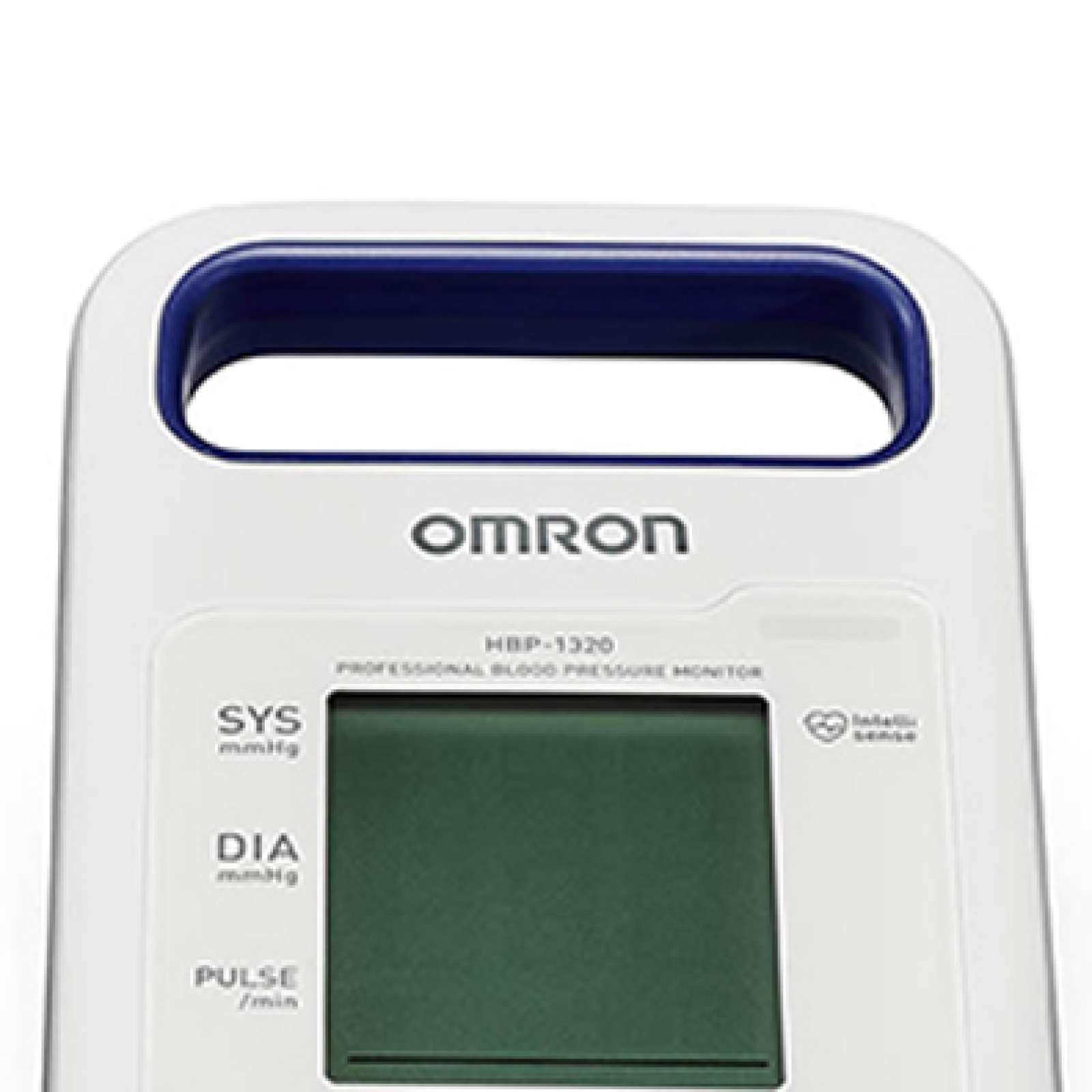

Portable

Designed for regular blood pressure measurements, the monitor is compact, lightweight, and has an integrated handle for easy carrying from patient to patient.

Dual mode

Depending on patient's condition such as atrial fibrillation, fully automatic oscillometric measurement or manual auscultation mode (using a stethoscope) can be chosen.

Other Resources

Clinical validation ANSI/AAMI/ISO guidelines (English only)

Clinical validation according to the European Society of Hypertension International Protocol revision 2010 (English only)
