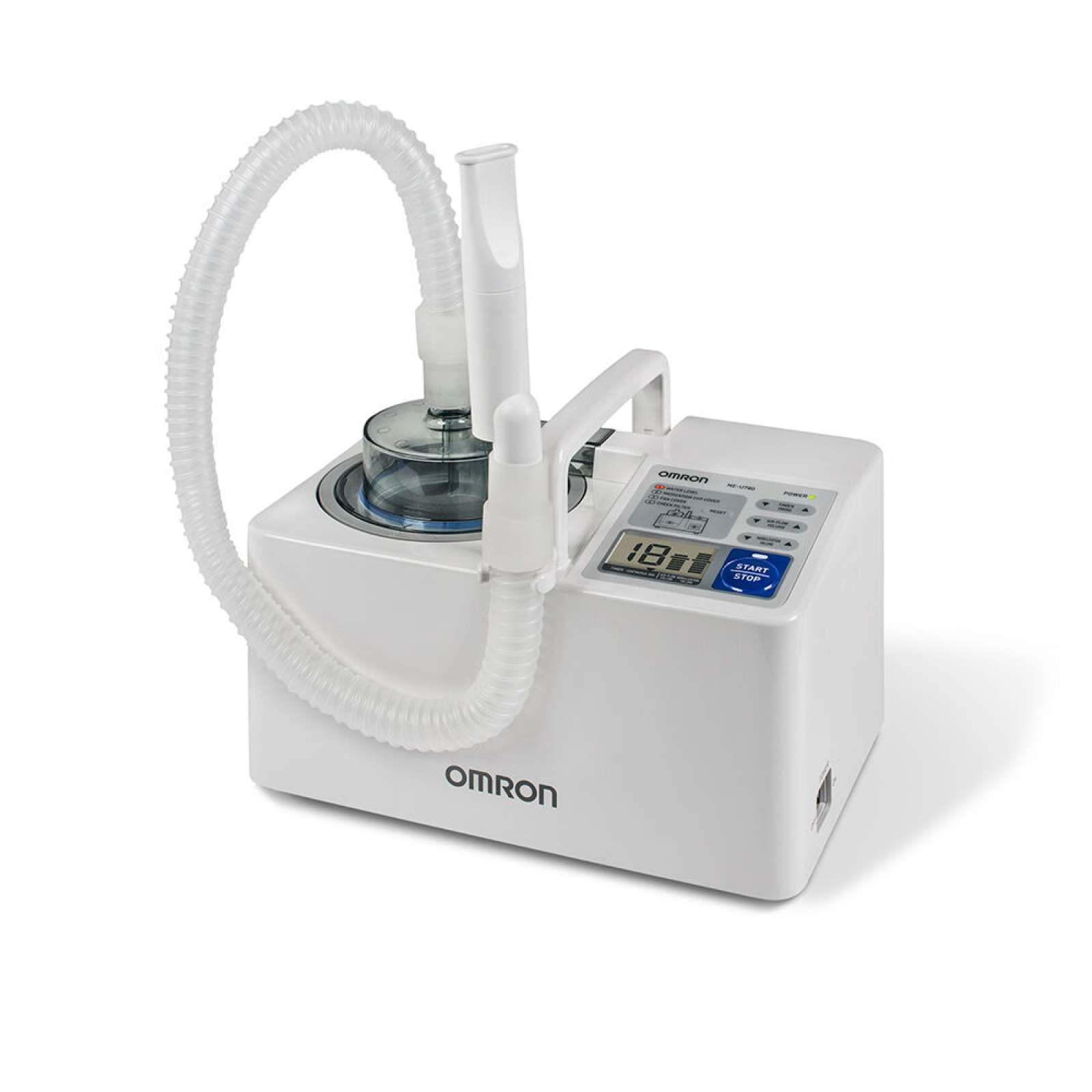

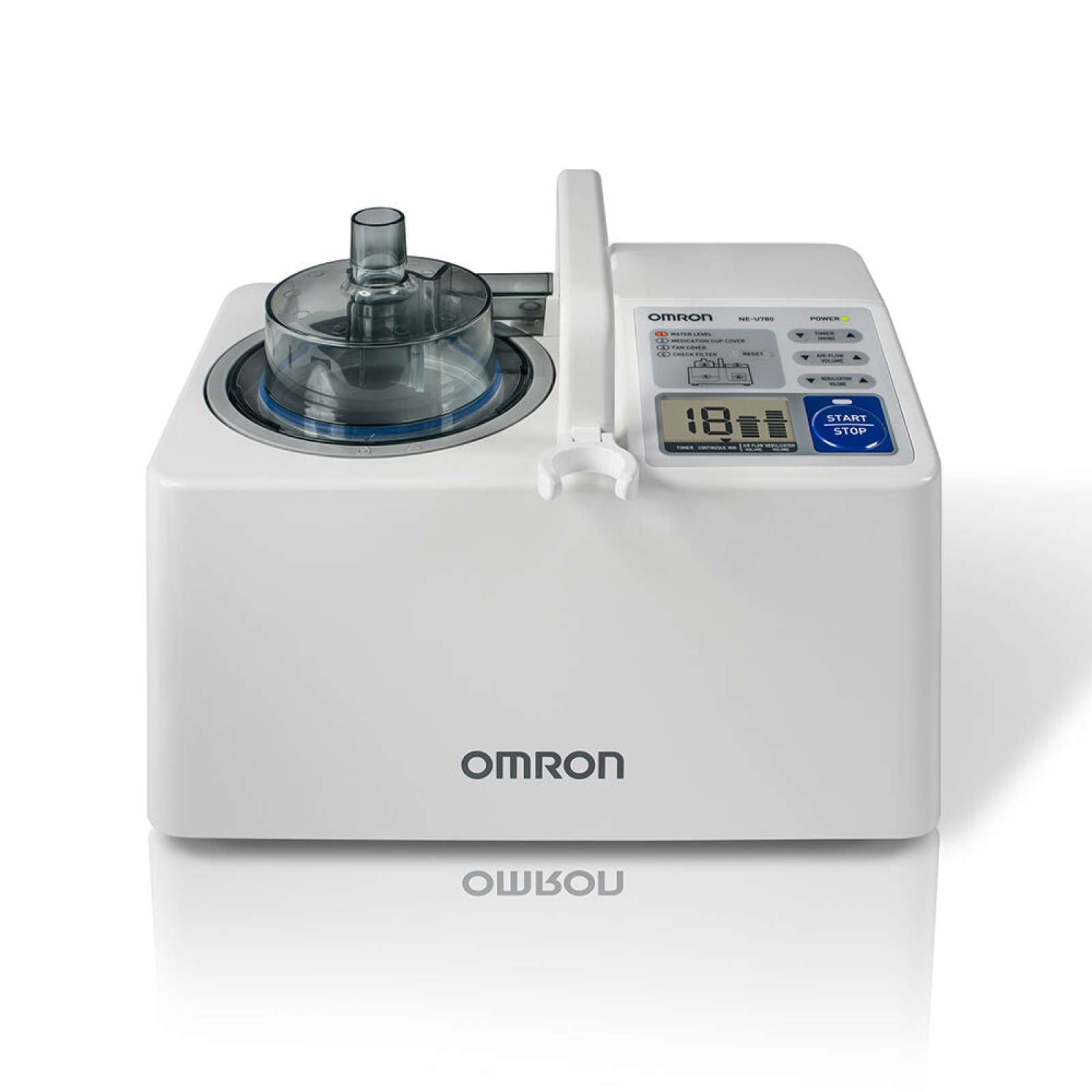

Ultra A-I-R Pro

NE-U780-E

Respiratory Products

Professional Ultrasonic Nebulizer with removable water tank

- Smooth shape for easy cleaning – The main unit is easy to clean and disinfect by using sheet switches and air pathways that can be easily wiped clean and disinfected.

- Autoclave-safe attachments – The medication cup cover, inhalation hose, mouthpiece, and inhalation mask (optional) can be disinfected using either an autoclave or sterilizing liquid.

- Large, easy-to-see LCD display – The product features a large LCD display that lets you identify timer, air-flow volume, and nebulization volume settings at a glance. A backlight ensures the display is visible in dark locations, too.

- Audible Alarm – The product warns you with an audible alarm when an error has occurred or when the set time has elapsed. Error LEDs indicate where an error has occurred.

The NE-U780 was developed in conjunction with respiratory therapists for the successful treatment of asthma, chronic bronchitis, allergies, and other respiratory disorders. This is a medical device.

The OMRON NE-780 is an ultrasonic nebulizer especially designed for professional use in doctor's offices and hospitals.

The removable water tank, which can be completely immersed in disinfecting liquid, makes cleaning the ultrasonic device particularly easy.

The OMRON NE-U780 offers a high aerosol output rate, making it ideal for the treatment of a variety of respiratory diseases. Both the nebulization volume and air-flow volume can be adjusted as required and the backlight on the display simplifies the operation of the device considerably.

Main unit, removable water tank, medication cup cover, medication cup holder, inhalation hose M, mouthpiece, medication cup (2 pcs), power cord, instruction manual

Weight of Device (kg): 2.5

Power Consumption: 85 VA

Nebuliser Type: Ultrasonic Nebuliser

Operating Temperature/Humidity: +10°C to +40°C / 30% to 85%RH

Aerosol Percentage: 3.04 ml

Aerosol Output Rate: 0.14 ml/min

Area of Airway: Lower Airways - Asthma - Bronchitis - Bronchiolitis - COPD

Nebulisation Rate: 0.5 ~3 ml/min (adjustable)

Particle Size: 4.6 μm

Mains Operation: Yes

Operating Volume: 40 dB

Classifications: Class l

Item Dimensions (mm): 295 x 196 x 219

Instruction manual

Download

Need help? Feel free to contact us.

Energy from ultrasonic vibration is transferred to the water from the vibrator at the bottom of the removable water tank.
The energy from the ultrasonic vibration is transferred to the medication in the medication cup via the water in the removable water tank.
Medication in the medication cup is nebulized and dispersed by means of the ultrasonic vibrations.
The fan blows a steam of air containing atomized medication outside the product in a process known as nebulization
Energy from ultrasonic vibration is transferred to the water from the vibrator at the bottom of the removable water tank.
The energy from the ultrasonic vibration is transferred to the medication in the medication cup via the water in the removable water tank.
Medication in the medication cup is nebulized and dispersed by means of the ultrasonic vibrations.
The fan blows a steam of air containing atomized medication outside the product in a process known as nebulization.

Notes:

Atomization: The process by which the medication becomes an aerosol.
Nebulization: The process by which the atomized medication is expelled by the product.

Remove the water tank and fill up to the noted level.
Add the correct amount of prescribed medication to the medication cup.
Put the medication cup cover back onto the tank.
Replace the water tank onto the main product.
Attach the inhalation hose and the mask or mouthpiece.
Ensure the device is in the off position. Connect the power cord to the device and the wall outlet.
Turn the power on, adjust the buttons as required for the patient’s treatment.
Press the Start/Stop button. As the ultrasonic nebulizer starts, nebulization begins and aerosol is generated. Inhale the medication.
Press the Start/Stop to turn the device off.

Notes:

Refer to the Instruction Manual for the full details on the application of this product.

Sterilization with an EOG sterilizer
Only the main unit can be sterilized with an EOG sterilizer. Do not attempt to sterilize the removable water tank or other parts with an EOG sterilizer. Refer to the sterilizer’s instruction manual and contact the EOG sterilizer manufacturer for more information.

Note:
Ethylene oxide gas (EOG) will remain on the nebulizer’s rubber and plastic parts. Perform aeration (air replacement) for an adequate interval after sterilization as determined in consultation with the EOG sterilizer manufacturer until the parts are safe for use by humans.

Sterilization with a low-temperature plasma sterilizer
Only the main unit can be sterilized with a low-temperature plasma sterilizer. Do not attempt to sterilize the removable water tank or other parts with a low-temperature plasma sterilizer. Refer to the sterilizer’s instruction manual and precautionary information for more information.

Disinfection chart

Cautions

Do not put any liquid other than tap water inside the removable water tank. It may damage or degrade the vibrator.
Do not place the main unit higher than your head during inhalation.
It may cause the medication to drip onto your face or clothing.
Do not carry or leave the main unit while the medication cup contains medication. It may cause the medication to spill, damaging the main unit or soiling the area around it.
Do not use the product for any purpose other than inhalation.
When cleaning the removable water tank, exercise care not to damage the vibrator.
When sterilizing in an autoclave, exercise care so that no parts come into contact with metal parts that are in contact with the sterilizer heater or heater. Because the heater becomes hot, any parts that come into contact with it may melt or become misshapen.
Never clean with benzene or thinner.
When disposing of or recycling the main unit, its accessories, and any optional accessories, treat them as medical waste in accordance with methods prescribed by your local government.
