OMRON Connect compatible

NightView

HEM-9601T-E3

Blood Pressure Monitors

3 years of warranty

NightView is the first at-home wrist monitor designed to measure nighttime blood pressure. Even with controlled daytime blood pressure, 1 in 4 people still has a condition called nocturnal hypertension.

Minimal sleep disturbance due to silent and gentle nighttime blood pressure measurement with automatic settings.

Comfortable wearing during the night due to the wrist-cuff which can be adjusted to different circumference sizes between 13.5 – 21.5 cm.

Compatible with OMRON connect app.

NightView is a completely silent way to measure daytime blood pressure and automatically measure nighttime blood pressure, while still sleeping soundly.

With NightView, you can:

Get the full picture of your blood pressure – both nighttime and daytime
Monitor your progress and share data with your doctor to help improve treatment plans

Monitor, Storage case, 2 “AAA” alkaline batteries, Instruction manual, Blood pressure pass

Device Type	Wrist Blood Pressure Monitor
Weight of Device	0.11
Cuff Type	Wrist Cuff 13.5–21.5 cm
Cuff Wrap Guide	Yes
Memory management	350 readings
Irregular Heartbeat Detection	No
Body Movement Detection	No
Validation	Clinical Validation
AFib detection	No
Easy High Blood Pressure Indicator	No
Advanced Positioning Sensor	No
Intellisense	No
Storage Case Included	Yes
Averaging Function	No
Connected	Yes
Item dimensions (mm):	55 x 111 x 17

Download Nightview Manuals

Download

Need help? Feel free to contact us.

No. The measurement times have been determined based on a study into measuring of nocturnal blood pressure. Most people are usually asleep at 02:00 and 04:00 and their blood pressure starts to show a change at these times.

If you cancel the night measurement mode and start again, measurement will be performed 4 hours after that.

Nocturnal blood pressure is known to fluctuate depending on daily habits such as activity during the day, intake of salt and alcohol. Therefore, it is recommended that you check daily trends instead of just one day.

The device takes three measurements during the night, these will be at the fixed times of 02:00 and 04:00. The third measurement is variable based on when you go to sleep, the final measurement will be taken 4 hours after starting the device.

Your blood pressure is constantly changing and this includes at night while you sleep. So even if your blood pressure is normal during the day, it is possible that your nocturnal blood pressure is high. If your nocturnal blood pressure is high, this can mean you are at risk of a stroke.

In that case, measurement numbers are twice, not three times.

A common issue is that the cuff is wrapped too loosely. Extra error codes, please refer the Instruction Manual.

Home nocturnal blood pressure monitoring is the practice of measuring your blood pressure at home while you sleep.

Yes, the OMRON Nightview has been clinically validated for accuracy even when lying down.

Based on past study, set at 2 am and 4 am, 4 hours after the start of the night measurement. This timing is when many people fall asleep and blood pressure falls. As for the reference value, the diagnostic reference value for nocturnal hypertension is set in the hypertension treatment guidelines of each country.

Automatic and accurate

With accommodations for different lifestyles and sleep patterns, NightView automatically measures blood pressure at 2:00 AM1, 4:00 AM2 and 4 hours after switching to nocturnal mode3. Plus, NightView is clinically validated for accuracy in different positions, even if the wrist rotates during sleep4.

Comfortable and silent

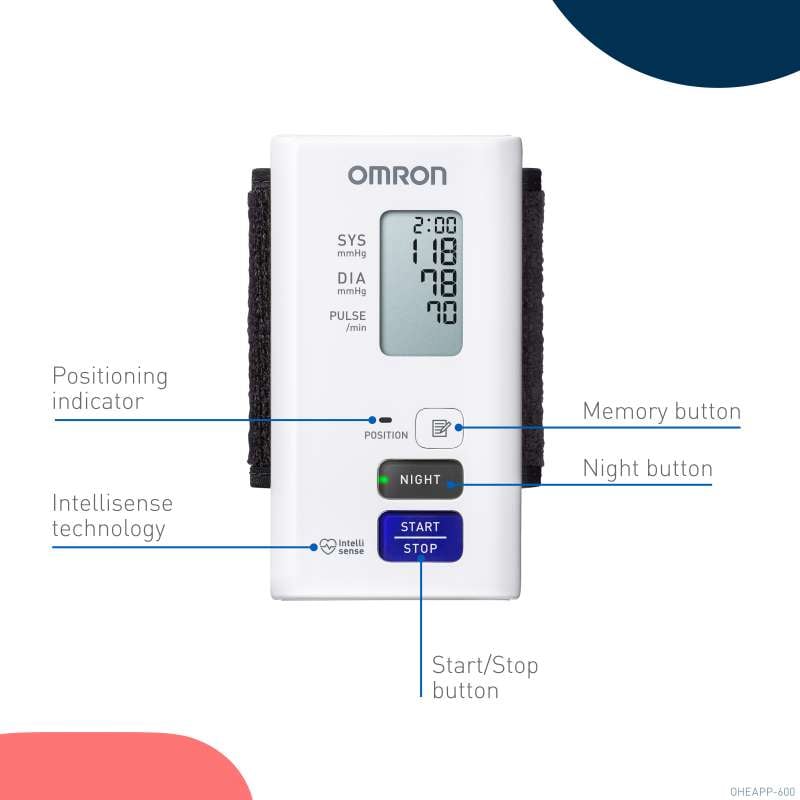

NightView features an innovative wrist-cuff design for comfort and ease of use, as well as recessed buttons to avoid accidental contact during sleep. The device has completely silent pumping action for minimal sleep disturbance and measures with gentle inflation and less compression time.

Tracks data for you to share

NightView tracks and syncs blood pressure data with the OMRON connect app, compatible with iOS 10 and above, and Android OS 7 and above. Intuitive dashboard provides a quick overview of blood pressure patterns. Easily and remotely share your progress with your doctor.

Introducing NightView

Clinically validated accuracy for nocturnal measurements at home

NightView product information for healthcare professionals

Are you a healthcare professional? Visit the NightView page for healthcare professionals for a clinical validation document for healthcare professionals.

Visit healthcare professional page

References:
1. Kario K, Hoshide S, Haimoto H, et al. Sleep blood pressure self-measured at home as a novel determinant of organ damage: Japan morning surge home blood pressure (J-HOP) study. J Clin Hypertens (Greenwich). 2015;17(5):340-348.

2. Kario K, Kanegae H, Tomitani N, et al. Nighttime blood pressure measured by home blood pressure monitoring as an independent predictor of cardiovascular events in general practice. Hypertension. 2019;73(6):1240-1248.

3. Imai Y, Asayama K, Fujiwara S, et al. Development and evaluation of a home nocturnal blood pressure monitoring system using a wrist-cuff device. Blood Press Monit. 2018;23(6):318-326.

4. Kuwabara M, Harada K, Hishiki Y, Ohkubo T, Kario K, Imai Y. Validation of a wrist-type home nocturnal blood pressure monitor in the sitting and supine position according to the ANSI/AAMI*ISO81060-2:2013 guidelines: Omron HEM-9601T. J Clin Hypertens. 2020;22:970-978.

Compatibility

To see a list of smartphones tested with OMRON connect, please click here.
