PocketTens

HV-F013-E

Pain Relievers

3 years of warranty

OMRON PocketTens is pain reliever that helps you to relieve pain in joints and muscles. PocketTens is small, safe, easy to use and it can be used discretely anywhere.

3 pre-set programmes and 2 massage modes

10 intensity levels

Including reusable Long Life Pads (1 pair)

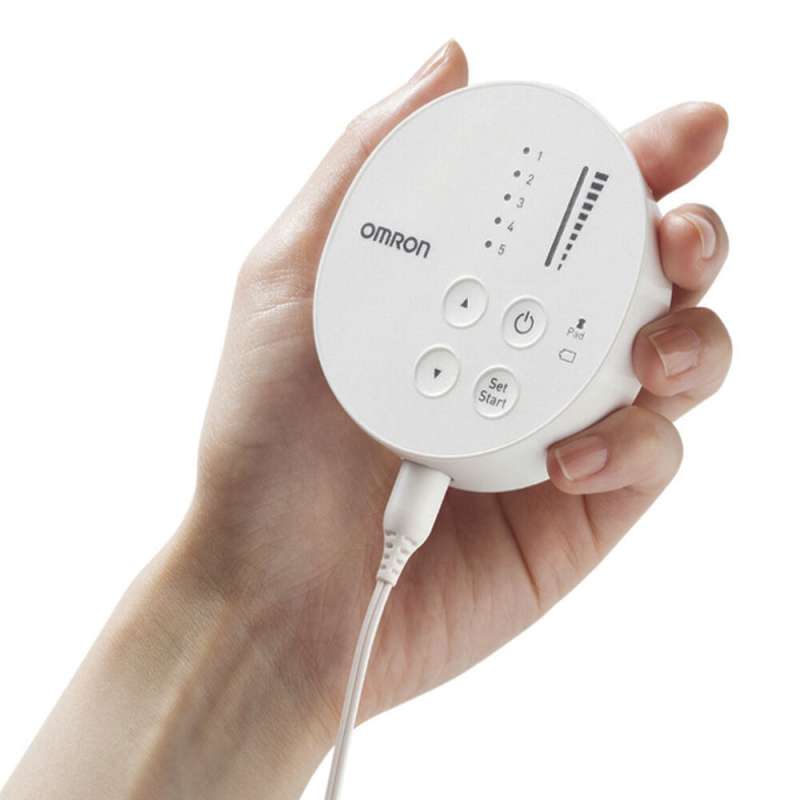

OMRON PocketTens is a powerful and portable TENS machine that fits in your hand.

OMRON PocketTens is pain reliever that helps you to relieve pain in joints and muscles. PocketTens is small, safe, easy to use and it can be used discretely anywhere.
Features 3 pre-set pain programs (arm/shoulder, lower back and leg/foot) and 2 massage like modes (knead and steady) each with 10 adjustable levels of power intensity to help relieve pain in different body parts.
Suitable for the areas of your body that most commonly experience pain – back, shoulder, joints, legs, arms and feet.
Includes durable Long Life pads (1 pair) that are reusable up to 150 times. Includes plastic holder for storage.
TENS is a clinically proven technology widely used by physiotherapists and pain specialists. It helps to block the pain message, trigger the release of endorphins and improve blood circulation.

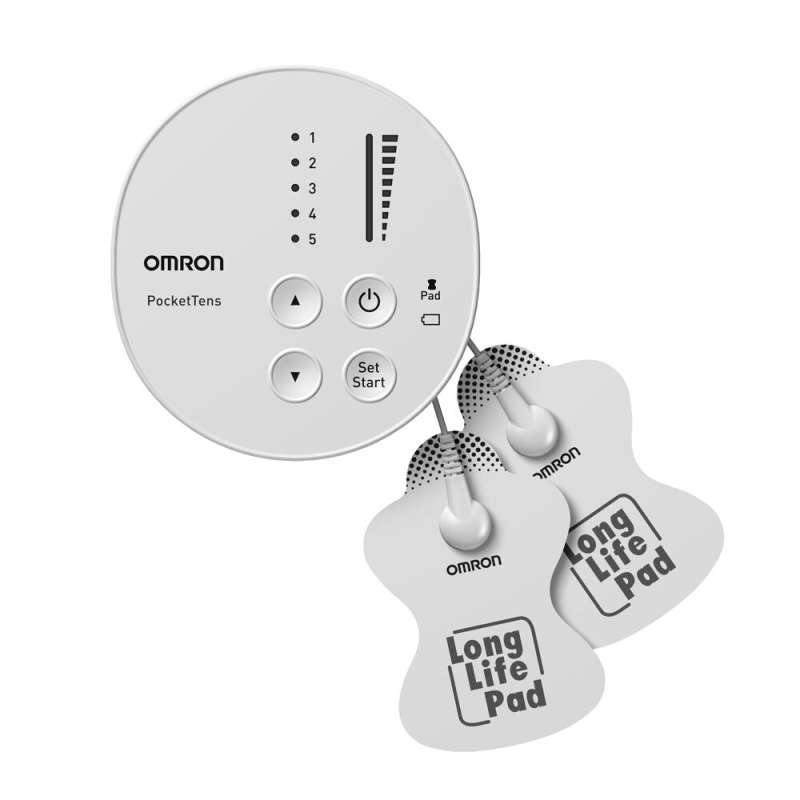

Main Unit, Cord with Pads, Pad Holder, self adhesive Long Life pads (1 pair), Instruction Manual, batteries

Display	No
Weight of Device	0.08
Massage Modes	2
Treatment Zones	Back, shoulder, joints, legs, arms and feet
Intensity Levels	10
Heat Mode	No
Pad Type	Long Life pads, reusable up to 150 times
Drug Free	Yes
Triple Action TENS Technology	Yes
Item dimensions (mm):	75 x 22 x 70

Instruction manual

Download

Need help? Feel free to contact us.

The unit will continue automatically for 15 minutes before it shuts off. We recommend a total of 2 x 15 minutes therapy in one sitting, up to 3 times/day.

Electrical signals are sent via ‘electrode pads’ to specific points on the body. This causes the muscles to react. As a result, two things happen:

Muscle pumping action:
By applying low-frequency electrical waves to a body area with stiffness/tiredness, muscles contract and extend (relax)
Muscle contracts: blood containing ‘waste’ is flushed out
Muscle relaxes: fresh blood rushes in
By this repeated ‘muscle pumping’ process, blood flow is improve

Shoulder stiffness, tired legs and cramps are relieved.

Shutting out pain signals:
By applying low-frequency signals to the painful area, the nerves near this area are stimulated, which affects the pain-transmission mechanism (‘inhibits’ pain messages) towards spinal cord. These have relatively short effect. Frequencies: 2 ~ 100Hz.
Electrical waves also stimulate the human body to produce natural Morphine-like substances (endorphins). These have a much longer effect (5 ~ 12 hrs).
Frequencies: 100 ~ 1200 Hz.

As a result, the sense of pain is relieved.

In case of experiencing an adverse reaction (skin irritation/redness/burns, headache or painful sensation, or if you feel any discomfort).
If pain gets worse or no relief of pain is felt after more than 5 days.

The Electrode Pads, including the ‘ePlus LongLife Pads’ do require periodic replacement. However, it is often possible to extend the life of the pads by simply rinsing them under a cold water faucet (no soap is required), shaking off the excess moisture, return the pads to the clear plastic cover sheet or the plastic holder (ePlus LongLife Pads only), and then place the pads in the refrigerator overnight (not the freezer). This should restore the adhesion of the pads. If it does not, the pads are worn and should be replaced. Contact your nearest OMRON retailer to obtain these.
