OMRON Connect compatible

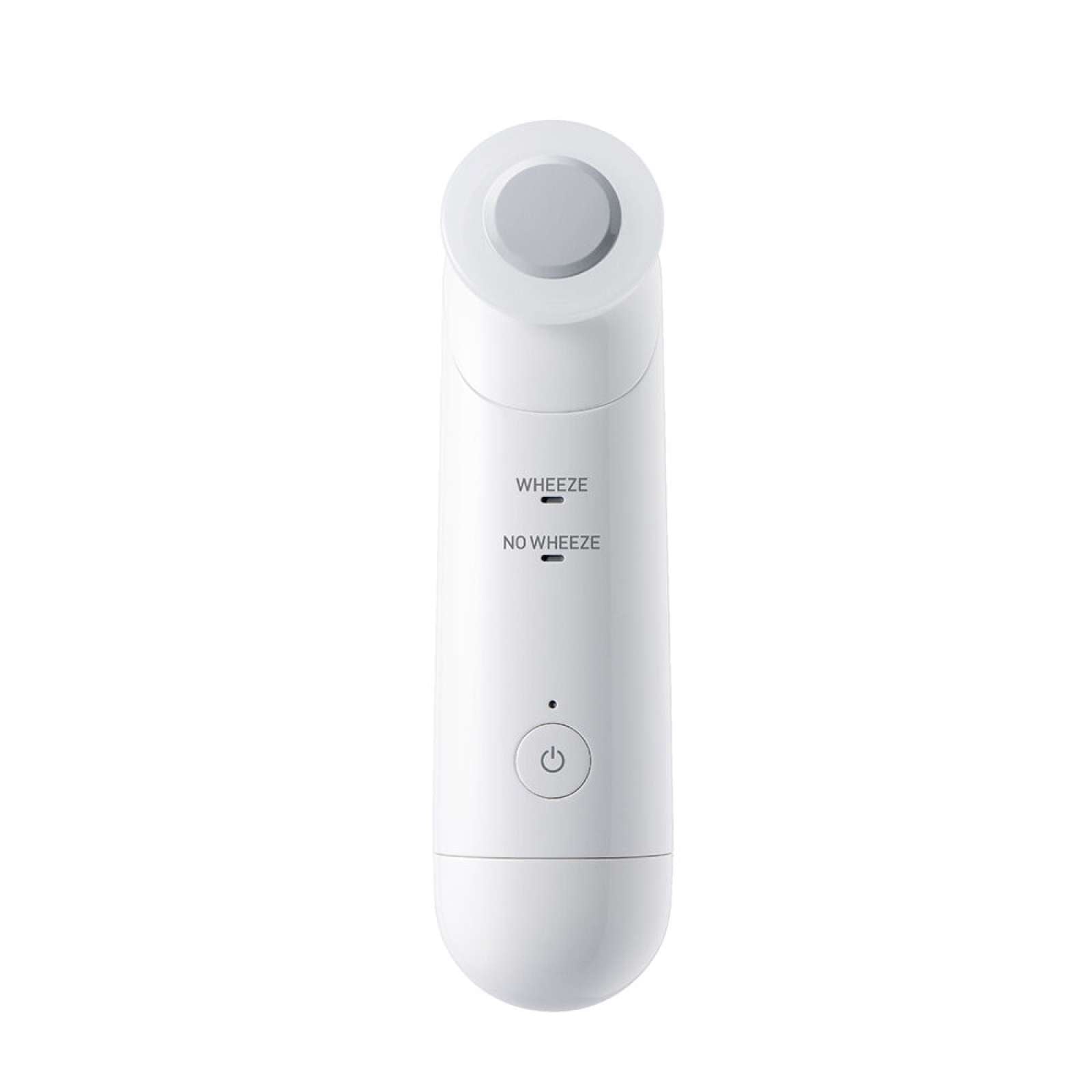

WheezeScan

HWZ-1000T-E

Nebulisers, Wheeze Detector and Oximeter

3 years of warranty

WheezeScan is designed to help parents detect wheeze in children with asthma symptoms.

Wheeze Detector

For babies and children

Compatible with Asthma Diary app

WheezeScan is designed to help parents detect wheeze in children with asthma symptoms.

WheezeScan is a tool designed to help parents detect wheeze in children with asthma symptoms. WheezeScan analyzes your child’s breathing to quickly and accurately tell you whether or not your child is wheezing, helping to:

Remove doubt in the moment of breathing distress
Know when and how to follow your doctor’s treatment plan

WheezeScan, 2 "AAA" alkaline batteries, Storage case, Instruction manual, Quick reference guide

Device Type: Wheeze Detector

Weight of Device (kg): 0.06

Battery Type: 2 "AAA" alkaline batteries

Mains Operation: No

Storage Case Included: Yes

Connected: Yes

Mains Supply: No

Compatible Mobile App: Compatible with Asthma Diary app

Age of User: Child, 4 months to 7 years old

Item Dimensions (mm): 33 x 27 x 121

Instruction manual

Download

Need help? Feel free to contact us.

You can delete the stored data and the pairing information by following the instructions below:

Press the [Connection] button first. Keep pressing it and press and hold the [Power] button for 5 seconds.
The Power indicator lights up and the other indicators flash. This means the status of confirmation of deleting the data.
During the status of confirmation of deleting the data, release both buttons and press and hold only the [Communication] button again for 2 seconds.
At the completion of the data clear, the Connection indicator lights up.

WheezeScan uses a highly sensitive microphone to analyze breathing sounds. It is possible that the device detects wheezing at such early stage that you cannot yet hear the whistling sound yourself. Always follow the instructions of your physician no matter what the result from this device is.

WheezeScan can only be used to detect wheezing with children from four months to seven years old.

With WheezeScan turned off, press and hold the [Connection] button for 2 seconds or more. The Connection indicator flashes and WheezeScan waits for pairing. Then, follow the instructions of the OMRON Asthma Diary App. Note that the [Connection] button does not function when WheezeScan is turned on.

After giving relief medication, WheezeScan may still detect the wheezing sound while the medication is taking effect. Always follow the instructions of your physician no matter what the result from this device is.

WheezeScan helps parents or caregivers to identify if the child is wheezing. If the child is having signs and symptoms of chest tightness, shortness of breath, coughing or wheezing, take action as prescribed by a physician.

There are several reasons why WheezeScan would give an error message. Please consult the troubleshooting section in the WheezeScan instruction manual.

With WheezeScan turned off, press and hold the [Connection] button for 10 seconds or more. The Connection indicator begins to flash after 2 seconds but keep pressing. DO NOT release the button. When the Bluetooth is turned off, the Connection indicator lights up. Then, WheezeScan automatically turns off.

You should always measure on the right side of the chest, under the collarbone. The left side of the chest is closer to the heart. Measurements may not be accurate due to the influence of the heartbeat.

Product benefits

Quick and accurate

WheezeScan quickly and accurately confirms whether or not your child is wheezing—giving you treatment confidence in the moment of breathing distress.

Product benefits

Easy to use

WheezeScan is a powerful, portable device that tells you if wheeze is present in less than 30 seconds, removing doubt in the moment of breathing distress.

Product benefits

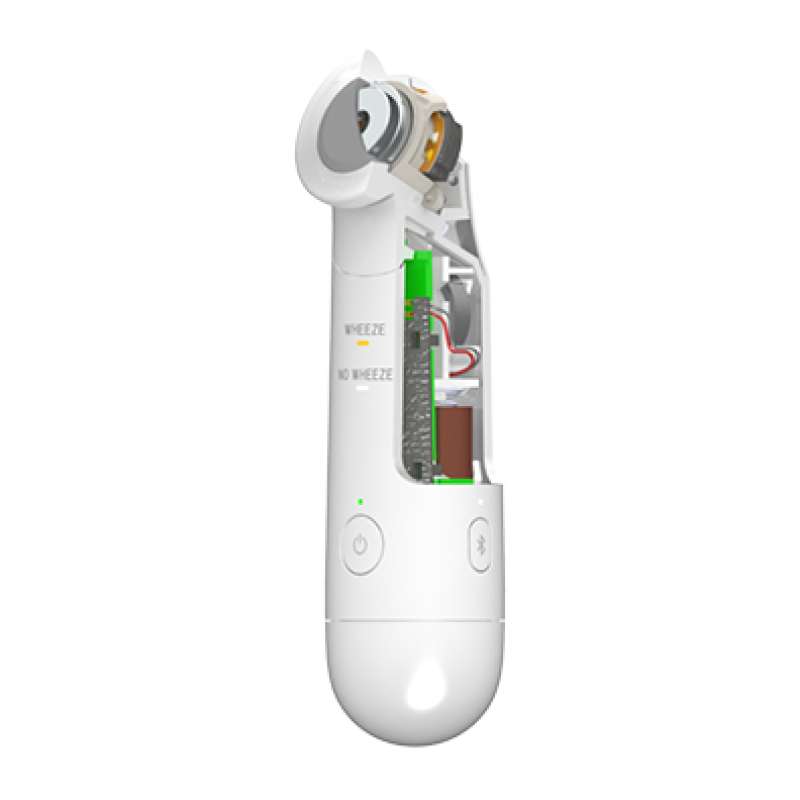

Innovative listening technology

Only WheezeScan uses advanced listening technology to confirm “wheeze” or “no wheeze” with accuracy, even when it occurs at low volumes that you may not be able to hear.

Product benefits

Asthma Diary app

With its complimentary mobile app, WheezeScan does more than accurately detect wheeze. The app allows you to log wheeze episodes, symptoms, and triggers that can be shared with your child’s doctor to help them manage your child’s care. Compatible with iOS 10 and above, and Android OS 7 and above.

Wheeze can be difficult to identify

Your child can’t always tell you what they’re thinking or feeling. That’s why when breathing trouble occurs, it can be hard to know what’s happening in the moment. Wheeze is the most common symptom of asthma in children under 5, but it doesn’t always sound the same. WheezeScan analyzes your child’s breathing to quickly and accurately tell you whether or not your child is wheezing.

Here’s what parents think about WheezeScan

“I am Marina, Emil’s mom. He is two and a half years old, and two months ago he was diagnosed with asthmatic symptoms.”

“It is very difficult to recognise an asthma attack because it actually starts with a cough and the wheezing is only recognized very late.”

Diagnosis

“Emil was diagnosed with early childhood allergic asthma in June 2020. It started with bronchitis in September 2019, followed by six more and a pneumonia until the diagnosis was made.”

“At the moment I heard Emil’s diagnosis, I was very scared and troubled with a lot of doubt, as I did not know how to deal with this disease.”

Daily life with asthma

“His asthma already has a great impact on our everyday life, because it is allergic and we have to be careful not to go into the forest too much. We have to be very careful that he doesn’t run around too much, which is quite difficult with a little whirlwind. But since we are also well prepared on the way with the emergency spray and the WheezeScan, we can now start the day very calmly.”

Preparing for an asthma attack

“At first, I did not know what to do when he had a coughing attack, because the diagnosis had not been made yet. But I already suspected that something was wrong. After the diagnosis was made, I knew what to do with his emergency spray. I also had to take him out of the situation so that he could calm down a bit.”

Detecting asthma attack

“It is very difficult to recognise an asthma attack because it actually starts with a cough and the wheezing is only recognized very late. However, as I don’t want to give the emergency spray too early, but I also don’t want the wheezing to provoke an asthma attack either.”

“The WheezeScan helps me to detect Emil’s wheezing early so that I don’t have to use an emergency spray too early.”

Experience with WheezeScan

“The WheezeScan is a little difficult to use with small children, but the speed makes it work very well. It is easy to hold, very good for traveling and I can leave it in the kindergarten so they can use it quickly.”

“I would recommend WheezeScan to other parents, because the device makes it easy to detect an asthma attack much faster and you can act much faster.”

"Wheezing is the most common symptom of asthma in children under the age of 5(1). If parents manage to identify a wheeze in time, they can prevent an asthma attack by following their doctor’s treatment plan. Despite this, a lot of parents struggle to identify a wheeze, because it doesn’t always sound the same(2)"

Prof. Dr. Bulent Karadag, Pediatric Pulmonology. Marmara University, Istanbul, Turkey

“Wheeze is one of the key symptoms of an Asthma attack in its early stages and one of the most common symptoms in children 5 years and younger, which is why appropriate identification and response to wheezing symptoms is essential to proper Asthma management”.

Prof. Dr. Kostas Priftis, Paediatrics-Paediatric Pulmonology. National and Kapodistrian University of Athens, Athens, Greece

“Research shows that parents and clinicians agree on the presence of wheezing only in 45% of the cases(3), which reveals the urgent need for a more objective identification of wheeze. From this perspective, we receive the development of the WheezeScan with enthusiasm, which accurately detects wheeze or no wheeze in the critical moment, so that parents can make the right treatment decision”

Prof. Dr. Wim van Aalderen, Pediatric Respiratory Medicine. Amsterdam Medical Center, Amsterdam, The Netherlands

References:
1. Global Initiative for Asthma. Global Strategy for Asthma Management and Prevention, 2016. Available from: www.ginasthma.org
2. Cane RS, McKenzie SA. Parents' interpretations of children's respiratory symptoms on video. Archives of Disease in Childhood. 2001;84(1):31-34.
3. Cane RS, Ranganathan SC, McKenzie SA. What do parents of wheezy children understand by wheeze? Arch Dis Child. 2000;82(4):327-332.
